Champion Product Line

Efficient and Reliable Reciprocating Air Compressors

Champion air-cooled reciprocating pumps and air compressor packages match the needs of a wide variety of compressor applications. Champion’s portfolio includes both single-stage and two-stage compressors, designed for home and plant use respectively. Champion also offers reciprocating units with an acoustical enclosure to lessen the noise from this type of compressor.

Because every shop is different and has varied needs, our expert sales team stands ready to help you select the right lift for your shop. We serve customers inMaryland, Virginia, Metro D.C., West Virginia and Delaware. Monday-Friday from 8am to 5pm. Give us a call for more information at 800.604.9653.

Two Stage, Oil Lubricated Reciprocating Compressors (9.1-23.9 HP)

Champion is the leader in manufacturing dependable compressed air systems. Champion offers a complete line of engine driven compressor packages from 9.1-23.9 horsepower to meet any application. With an engine driven package, there is no need to worry about electrical service. Engine driven air compressors were designed to provide compressed air in remote locations or for emergency production line needs.

9.1-23.9 HP

Two Stage Compressor Pump

Available in Splash or Pressure Lubrication

3-year Pump Warranty and 1-year Package Warranty

FEATURES

ASME & CRN Certified 30, 60, 80 Gallon Horizontal Air Receivers

Manual Receiver Drain Valve

Pressure Relief Valve

Service Valve

Pressure Gauge

Vibration Isolators

Belt Driven

Electric Start

Enclosed Belt Guard

Oil Level Sight Glass

Available Options

Electric Fuel Pump

Regulator and Line Oiler

Canvas Cover

Remote Start/Choke Kit

BENEFITS

Reliable, High Flow Disc Valves

Precision Balanced Flywheel for Optimum Compressor Cooling

Gasketless Designed Integral Cylinder/Head

Intercooler for Cooling Between Stage

Pumps Factory Filled with ChampLub Lubricants and are Tested at the Factory Prior to Shipment

Available with Preset Pressure Ratings up to 250 PSIG with the PL-Series Pump

DOWNLOADS - Brochures

Engine Driven Reciprocating Air Compressor Brochure

Engine Driven Reciprocating Air Compressor Brochure - Spanish

Engine Driven Reciprocating Air Compressors
Single & Two Stage, Splash Lubricated (3-15 HP) Reciprocating Air Compressor

The VP-SERIES compressor line was engineered for light industrial applications. Each compressor was designed with top quality bearings, cast iron cylinders, vibration free compressor pumps to insure longevity of the compressor package. The VP-SERIES is another quality product in the Champion line of air compressors.

FEATURES

Magnetic Starters*

Automatic Start/Stop Operation

Heavy Duty Belt Guard

NEMA Rated Electric Motors

ASME Coded Air Receivers

Manual Tank Drain

Air Pressure Gauge on Receiver

Preset Pressure Switch

BENEFITS

Splash Lubricated

Single- & Two-Stage Design

100% Cast Iron

Oil Level Sight Glass

Pressure Relief Valves

Large Flywheel Blades for Maximum Cooling

Deep Finned Intercooler

Industrial Grade Intake Filter and Silencer

Capable of pressures up to 150 PSIG

Factory filled with lubricant

All pumps are factory tested prior to shipment

DOWNLOADS - Brochures

VP-SERIES Electric and Gas Driven Compressor Brochure

VP-SERIES Electric/Gas Driven Compressor
Two Stage, Splash Lubricated (5-15 HP) Quiet Enclosed Reciprocating Air Compressor

Champion has always prided itself on bringing the most innovative technology to the marketplace. There is no better example of this than the state of the art, re-designed Quiet Enclosed Reciprocating compressor package. Using our legendary R-Series compressor pump, this compressor combines the reliability and high performance of our flagship compressor pump into an enclosure that provides optimum cooling and low sound levels.

The Revolution is ideal for applications that require the technology of a reciprocating compressor but also lower sound levels. This compressor has dBA levels as low, or even lower, than a typical Rotary Screw compressor and approach temperatures less than 20 degrees.

FEATURES

Quiet Enclosed design utilizing 2” foam on external panels

Legendary R-Series compressor pump

ASME inter-stage pressure relief valve for protection

ODP NEMA 1760 RPM electric motor

10 Micron industrial grade intake filter

ASME coded receiver

0-300 PSIG air pressure gauge on tank

Available voltages

Single phase: 208-230

Three phase: 208/230/460/575

50 HZ options available

BENEFITS

Sophisticated control panel design with power on light, fault light, Hour Meter and ON-OFF switch as standard

Remarkably low sound levels, as low as 62 dBA!

Bottom intake and discharge for better sound attenuation

Ability to run the package with doors on, making it a fully enclosed quiet package, or with the doors off allowing for even more airflow

B11.19 compliant enclosure

Save on space and installation costs by selecting the mounted refrigerated dryer option to the package

2” foam on external panels

Efficient over-sized bar and plate after-cooler

Large cooling fan provides optimum airflow and cooler temperatures

Electronic tank drain

High temp switch

Food Grade Oil

Pump Benefits

Oil-Free/Contaminant Free Air

Continuous Operation, 100% Duty Cycle

Low Sound Levels

Low Vibration

Compact Footprint

Less Moving Parts

High Efficiency

DOWNLOADS - Brochures & Specs

5-15 HP | Quiet Enclosed Reciprocating Air Compressors

Revolution Quiet Enclosed Reciprocating Air Compressor

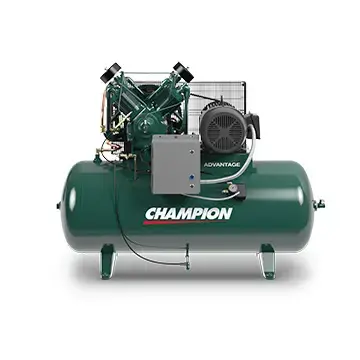

Two Stage, Splash Lubricated (5-25 HP) Reciprocating Air Compressor

The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

FEATURES

5 - 25 hp

Maximum Pressure Up to 175 psig

16.5 - 90.1 acfm at 175 psig

Two Stage, Splash Lubricated

Tank Mounted, Simplex and Duplex Models

Vertical or Horizontal Configurations

Package comes standard with up to six pre-installed options

Factory filled with ChampLub lubricant

BENEFITS

Convenience. Each package comes standard with up to six, pre-installed options: magnetic starter, auto tank drain, vibration isolator pads, low oil level monitor, air cooled aftercooler, duplex control panel.

Confidence. Each compressor features a 3-year pump warranty and 1-year package warranty.

Cost-Efficiency. Fully-equipped packages mean lower purchase prices and installation costs.

Configuration. Advantage Series configuration provide maximum versatility in every application.

Competitive Advantage. Unique features make the Advantage Series more competitive. From its heavy-duty design to its ease of maintenance, the Advantage Series exemplifies reliability, durability and quality.

DOWNLOADS - Brochures & Specs

5-25 HP | Reciprocating Air Compressors Brochures

Advantage Oil-Lubricated Reciprocating Compressor
Single Stage, Splash Lubricated (0.5-3 HP) Reciprocating Air Compressor

Champion's full line of compact Commandair reciprocating air compressors are manufactured to the same quality standards as our larger, industrial models. These packages are sized for smaller air requirements such as small industrial plants, schools, small automotive centers, and do-it-yourselfers.

Specifications and Features

0.5 - 3 HP

90 PSIG

1.8 - 10.2 CFM

Base or Tank Mounted, Vertical or Horizontal Configuration

Single Stage, Splash Lubricated

FEATURES

Automatic Start/Stop Operation

Loadless Starting via Pressure Switch

ODP NEMA 1760 RPM

10 Micron Industrial Grade Intake Filter

Oil-Level Sight Gauge

Available Voltages

Single Phase - 115, 208, 230

Three Phase - 208, 230, 460

Available Options

Automatic Tank Drain

Vibration Isolators

BENEFITS

Cast iron cylinders for holding rigid tolerances and ensuring high compressor efficiency.

Lightweight aluminum alloy pistons ensure proper reciprocating balance. Two compression rings and one oil-control ring are used for better oil control, less air blow-by, and higher efficiency.

Tapered roller bearings on two and three-cylinder models provide offer premium low friction movement for minimized efficiency.

Precision balanced flywheel has fan blades for maximum compressor cooling resulting in cooler compressor operating temperatures.

Rugged ductile iron crankshaft has large diameter throws for minimum bearing loads and counterweights to minimize vibration.

Rugged cast iron crankcase designed to rigidly support the crankshaft and bearings.

High density, high silicon die-cast aluminum alloy connecting rods minimize reciprocating weight and help promoted exceptional compressor life.

High-quality Swedish Steel reed-type valves provide long life.

Convenient oil level sight gauge on 2 and 3 cylinder models.

Removable cartridge-type intake filter features a 10-micron rated element.

DOWNLOADS - Brochures & Specs

Commandair Pump Model B1 ans B1S Brochure

Commandair Pump Model BVA and BVAS Brochure

Commandair Pump Model BWA Brochure

Commandair Single Stage Reciprocating Air Compressor Brochure

Commandair Splash Lubricated Reciprocating Compressor

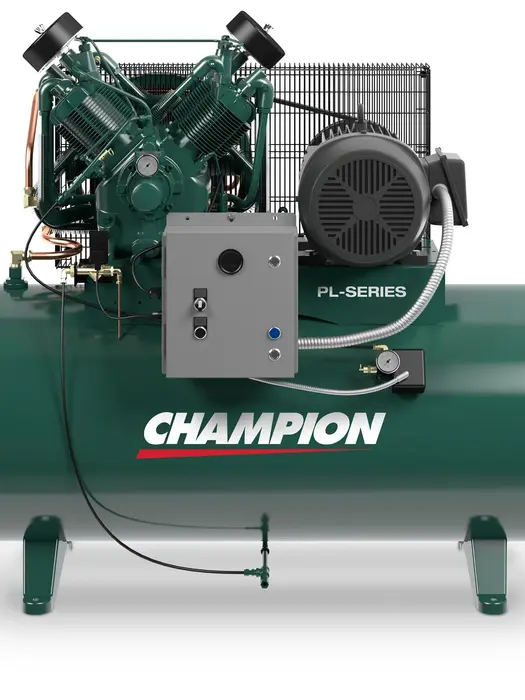

Two Stage, Pressure Lubricated (3-30 HP) Reciprocating Air Compressor

Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice.

3 - 30 hp

Up to 250 psig

9.7 - 202 acfm at 175 psig on Electric Driven units

Tank or Base Mounted, Simplex, Duplex and Engine Driven Models

Two-Stage pressure lubricated pumps

Loadless auto stop/start

3-year Pump Warranty and 1-year Package Warranty

Factory filled with AEON lubricant

FEATURES

Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor

ASME inter-stage pressure relief valve for protection

ODP NEMA 1760 RPM electric motor

10 Micron industrial grade intake filter

ASME coded receiver

0-300 PSIG air pressure gauge on tank

Available voltages

Single phase-115/208-230

Three phase-208/230/460/575

Available Options

Multiple tank sizes and variations

Electric or engine driven

NEMA 4 full-voltage starter upgrade

ODP HE/TEFC/TEFC HE motor upgrades

Control panel upgrades

Aftercooler

Air-cooled with or without moisture separator - Water-cooled with or without moisture separator

Low oil level monitor (NEMA 1 or 4)

Low oil pressure switch (NEMA 1 or 4)

Dual control

Vibration isolators

Synthetic lubricant

High temperature switch (NEMA 1 or 4)

Available switches (NEMA 1 or 4)

Hand/Off/Auto

Off/On

Automatic tank drain

Electric

BENEFITS

Pressure lubrication-crankshaft and connecting rod bearings are pressure lubricated for extended life

Integral cylinder/head design for trouble-free operation

Disc valves and an oil pump that provides lubricant to all critical components

Load-less starting via hydraulic unloader

Positive displacement oil pump

Lubricant filtration

Oil pressure gauge

Babbitt bearings

Domed pistons

DOWNLOADS - Brochures & Specs

R-Series Pump Model R-15B Brochure

PL-Series Pump Model PL-30A Brochure

PL-Series Pump Model PL-40 Brochure

PL-Series Pump Model PL-70 Brochure

PL-Series 3–30 HP | RECIPROCATING AIR COMPRESSOR

PL-Series Lubricated Reciprocating Compressor

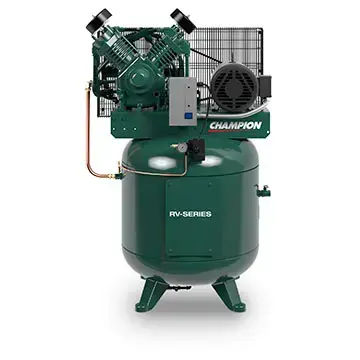

Two Stage, Splash Lubricated (2-15 HP) Reciprocating Air Compressor

The Champion RV-Series compressor is engineered to deliver industrial-rated dependability at an affordable price. The RV line offers maximum installation versatility. Each compressor features durable cast-iron construction, industrial grade filter and silencer and alloy steel reed valves.

2-15 HP

125-175 PSIG

4.5-48.1 CFM at 175 PSIG rating

Tank Mounted

Vertical Configuration with R-10/R-15 Pump

Horizontal Configuration Option with R-30 Pump

Two-Stage, Splash Lubricated Compressor Pump

Automatic Start/Stop Operation

Factory filled with ChampLub AC lubricant

13 HP gas engine compressor/generator model available

FEATURES

Automatic Start/Stop Operation

Magnetic Starter*

ASME Coded Receiver

NEMA Rated Electric Motors

0-300 PSIG Air Pressure Gauge on Tank

Preset Pressure Switch

Available Voltages

Single Phase-208, 230 on 2 HP through 7.5 HP with R-10 and R-15 Pump

Three Phase-208, 230, 460, 575 on 7.5HP through 15 HP with R-30 Pump

Available Options

Pneumatic Tank Drains

Vibration Isolators

Low Oil Level Monitor

Air-Cooled After-coolers

*Options not available on 5 HP 3600 RPM motor

BENEFITS

Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor

Cast iron cylinders and heads offer industrial-rated, rugged dependability

Industrial grade intake filter and silencer

Oil level site glass for easy monitoring

Deep finned intercooler for cool operation

ASME air receiver

NEMA-Rated electric motors

DOWNLOADS - Brochures & Specs

2–15 HP | RECIPROCATING AIR COMPRESSORS

RV-Series Two Stage Lubricated Reciprocating
Two Stage, Splash Lubricated (2-30 HP) Reciprocating Air Compressor

Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value.

2 - 30 HP

Up to 175 PSIG

4.2 - 202 ACFM at 175 PSIG on electric driven units

Mounted Dryer/AirStation option with XCNC dryer available on certain select simplex models

Gas and diesel engine drive models available

Tank or Base Mounted, Simplex & Duplex Models

Two Stage Splash-Lubricated Pumps

3 year standard warranty with the option for a 6 year extended warranty

Factory filled with ChampLub lubricant

FEATURES

Standard Features

Load-less starting (via centrifugal unloader) for lower energy costs and less wear on drive motor

ASME inter-stage pressure relief valve for protection

ODP NEMA 1760 RPM electric motor

10 Micron industrial grade intake filter

ASME coded receiver

0-300 PSIG air pressure gauge on tank

Available voltages

Single phase-115/208-230

Three phase-208/230/460/575

Available Options

Multiple tank sizes and variations

Electric or engine driven

NEMA 4 full-voltage starter upgrade

ODP HE/TEFC/TEFC HE motor upgrades

Control panel upgrades

Air-cooled with or without moisture separator

Low oil-level monitor (NEMA 1 or 4)

Dual control

Vibration isolators

Synthetic lubricant

High temperature switch (NEMA 1 or 4)

Available switches (NEMA 1 or 4)

Test/Off/Auto

Automatic tank drain - Electric

BENEFITS

Multi-Finned Cylinders for Cooler Operating Temperatures

Integral Cylinder/Head Design for Trouble-Free Operation

Balanced Pistons

Piston Rings Provide Excellent Oil Control and High Efficiency

Lightweight, Two-Piece Connecting Rods

Pressure Relief Valves

Large Diameter Finned Intercoolers

Optimized Cooling Fan/Flywheel

Reliable High-Flow Disc Valves

Tapered Roller Main Bearings

Balanced Crankshaft

Large Capacity Cast-Iron Crankcase

Centrifugal Unloader for Minimized Starting Power & Completely Load-Less Starting

DOWNLOADS - Brochures & Specs

R-Series 2-30 HP | Reciprocating Air Compressors

R Series Reciprocating Air Compressor Spanish Brochure

R-Series Lubricated Reciprocating Air Compressor
Single Stage, Pressure Lubricated (20-30 HP) Reciprocating Air Compressor

The A-series reputation has been built on reliability, quality, and accessibility to all components. Products include air-cooled bare compressors, boosters and vacuum pumps. A-Series compressors include counterbalanced crankshaft to ensure smooth operation, heavy duty cast iron construction, and deep-finned cylinders and heads, which quickly dissipate the heat of compression. Superior lubrication is accomplished through a gear driven positive displacement oil pump powered by the crankshaft. A-series bares and boosters are ideal for petroleum refineries, oil rigs, ore mines, plant air and vacuum, engine starting and well head servicing.

20-30 HP (compressor or booster)

60 PSIG operating pressure

Single Stage

Down to 28" Hg vacuum

Pressure Lubricated

Heavy-duty cast iron construction

Factory filled with AEON lubricant

FEATURES

Compressor or Vacuum Pump with spin-on oil filter

Drive sheave with turbo fins

Suction unloading valves (SUV) or plain valves as indicated

Oil level dipstick

Factory fill of Champ Lub AC

BENEFITS

ASME pressure relief valve protects the inter-cooler and first stage from over pressure.

Suction unloading valves (where applicable) provide load-less starting and stopping as well as quick response to capacity demands.

Removable hand-hole plate allows easy access to the internal running gear.

Tri-Metal insert bearings are two-piece for quick and easy replacement.

Counterbalanced crankshaft assures smooth operation.

Replaceable piston pin bearings are very economical when replacement becomes necessary.

Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.

Oil pressure gauge assures the operator of lubrication system integrity.

The cylinders and crankcase are built of industrial strength cast iron materials.

Deep-finned cylinders and heads quickly dissipate the heat of compression.

DOWNLOADS - Brochures & Specs

A-Series Reciprocating Air Compressor Brochure

A Series Oil Lubricated Reciprocating Compressor
Two Stage, Splash Lubricated (5-15 HP) Quiet Enclosed Reciprocating Air Compressor

Champion has always prided itself on bringing the most innovative technology to the marketplace. There is no better example of this than the state of the art, re-designed Quiet Enclosed Reciprocating compressor package. Using our legendary R-Series compressor pump, this compressor combines the reliability and high performance of our flagship compressor pump into an enclosure that provides optimum cooling and low sound levels.

The Revolution is ideal for applications that require the technology of a reciprocating compressor but also lower sound levels. This compressor has dBA levels as low, or even lower, than a typical Rotary Screw compressor and approach temperatures less than 20 degrees.

FEATURES

Quiet Enclosed design utilizing 2” foam on external panels

Legendary R-Series compressor pump

ASME inter-stage pressure relief valve for protection

ODP NEMA 1760 RPM electric motor

10 Micron industrial grade intake filter

ASME coded receiver

0-300 PSIG air pressure gauge on tank

Available voltages

Single phase:208-230

Three phase: 208/230/460/575

50 HZ options available

Package Benefits

Sophisticated control panel design with power on light, fault light, Hour Meter and ON-OFF switch as standard

Remarkably low sound levels, as low as 62 dBA!

Bottom intake and discharge for better sound attenuationAbility to run the package with doors on, making it a fully enclosed quiet package, or with the doors off allowing for even more airflow

B11.19 compliant enclosure

Save on space and installation costs by selecting the mounted refrigerated dryer option to the package

2” foam on external panels

Efficient over-sized bar and plate after-cooler

Large cooling fan provides optimum airflow and cooler temperatures

Electronic tank drain

High temp switch

Food Grade Oil

Benefits

Multi-Finned Cylinders for Cooler Operating Temperatures

Integral Cylinder/Head Design for Trouble-Free Operation

Balanced Pistons

Piston Rings Provide Excellent Oil Control and High Efficiency

Lightweight, Two-Piece Connecting Rods

Pressure Relief Valves

Large Diameter Finned Intercoolers

Optimized Cooling Fan/Flywheel

Reliable High-Flow Disc Valves

Tapered Roller Main Bearings

Balanced Crankshaft

Large Capacity Cast-Iron Crankcase

Centrifugal Unloader for Minimized Starting Power & Completely Load-Less Starting

DOWNLOADS - Brochures & Specs

5–15 HP | QUIET ENCLOSED RECIPROCATING AIR COMPRESSORS

Revolution Quiet Enclosed Reciprocating Air Compressor
Single Stage, Splash Lubricated (.5-1.5 HP) Reciprocating Air Compressor

The Champion line of specially-designed climate control compressors represents years of intensive industrial research and testing. We've listened to the needs of the end user, and seen the short-comings of our competitors. The result is a line of machines suitable to critical industry demands for value and lasting performance. Features include low operating RPM for longer component life, lower operating temperatures, greater energy efficiency, inlet filter silencers and side-sealer piston rings (on selected models) for lower oil carry over.

.5-1.5 hp

2.2 - 5.7 ACFM at 80 PSIG

Up to 80 PSIG maximum pressure on selected models

Tank Mounted, Simplex & Duplex Models

Single Stage

Air Cooled, Splash Lubricated

Heavy Duty Enclosed Belt Guard

Factory filled with AEON lubricant

FEATURES

Low oil carry over of 2 PPM

Low operating RPM

Lower operating temperatures

Greater energy efficiency

Inlet filter silencers

ASME coded air receiver

NEMA rated electric motors

Heavy duty enclosed belt guard

Manual receiver drain

0-300 PSI air pressure gauge on receiver

Factory fill with ChampLub reciprocating compressor lubricant

1-Year warranty

Available Options

Magnetic starter

Flexible connectors

Automatic receiver drain

Refrigerated air dryers

Control panels

Vibration isolator mounts

BENEFITS

Cast iron cylinders for holding rigid tolerances and ensuring high compressor efficiency

Lightweight aluminum alloy pistons ensure proper reciprocating balance. Two compression rings and one oil-control ring are used for better oil control, less air blow-by, and higher efficiency

High density, high silicon die-cast aluminum alloy connecting rods minimize reciprocating weight and help promoted exceptional compressor life

High-quality steel reed-type valves provide long life

Tapered roller bearings on two- and three-cylinder models provide premium low friction movement for maximized efficiency

Precision balanced flywheel has fan blades for maximum compressor cooling—resulting in cooler compressor operating temperatures

Rugged ductile iron crankshaft has large diameter throws for minimum bearing loads and counter weights to minimize vibration

DOWNLOADS - Brochures & Specs

.5–1.5 HP | RECIPROCATING AIR COMPRESSORS

Climate Control Reciprocating Air Compressor
