i5 Smart Welder
The i5 features a new medium frequency trans-gun capable of delivering over 13,000A with over 1,000 lbs (450dAN) of squeeze pressure. The i5 is designed to handle all new ultra high strength steels including Boron, etc. The operator can chose between two different modes AUTO and MANUAL for the two-sided spot welding.
Features:
Auto Weld: The i5 delivers the correct weld current, weld time, and weld pressure every weld regardless of type of metal or thickness at the push of a button.
Double-Acting Trans-Gun: Unlike any other trans-gun on the market, the i5 can spread the electrodes wide open with the push of a button without the operator ever having to remove his or her hands from their original positions.
Full-Color Touch Screen Interface: High contrast, full-color touch screen display featuring over 3,000 OEM screens (with weld data and repair recommendations) from several manufacturers.
Custom Water-Cooled Weld Arms: The same versatility and ease of use that Pro Spot has made a standard in the industry, but with the added functionality of a 5 gal. (20L) radiator-looped cooling system all the way to the weld caps.
Advanced Upgrade System: Upgrade your systems software via the same USB slot that you receive log-in and weld history info. No flash cards required.
Overhead Boom and (optional) Tool Balancer
Hidden Tool Storage
More Features
Auto Weld
Measure: At the press of a button, the i5 measures the thickness of the metals automatically using the latest optical technology.
Sense: The i5 then senses the metals to be welded from a pre-delivered current to determine the type of metal.
Weld: The i5 features a new medium frequency trans-gun capable of delivering over 13,000A with over 1,000 lbs (450 daN) of squeeze pressure. Based on the thickness and resistance feedback information, the i5 delivers the correct weld power every time regardless of type of metal or thickness.

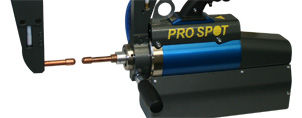

Double-Acting Gun
One of the most important features of the spot gun is its “double-acting” ability. Unlike any other trans-gun on the market the i5 can spread the electrodes wide open with the push of a button without the operator ever having to remove his or her hands from their original positions. That not only saves time but also assures that the operator doesn’t to have to alter their holding position in order to loosen and move the weld arm manually only to then re-tighten.
Full Color Touch Screen Interface
High contrast full color touch screen display featuring over 3,000 OEM Screens (with weld data and reapir recommendations) from several manufacturers.
Water Cooled Weld Arms
From left: PSW-305 508 mm U-Arm, PSW-302 C-Arm, PSW-52-5/8 Wheelhouse Arm, and PSW-CW1 C to X Adapter
C to X Adapter - Type X Adapter
The X-type design is used on certain applications where the C-type can’t reach. 90% of all welding needs can be done with the C-type but for some radiator support and truck bed pinch welds, the X-adapter is priceless. This invention from Pro Spot now makes it possible to weld where you never could before!
Swivel a Full 270°
The i5’s screen housing can swivel a full 270°, and while we’ve gone digital, we still include a physical power switch and pressure gauge for convenience.
Cooling Fans, Coolant Tank & More
In the rear of the i5 you can locate the cooling fans, coolant tank cap and level indicator, plus the power cord and air inlet. This is also where the overhead boom rests.
Hidden Drawer
A hidden drawer has been installed to place everyday items that a welder might need to keep at hand such as extra tips, or single-sided welding bits.
Tool Racks
The i5 has tool racks installed on both sides and places for all of the extension arms that come standard with the machine. There are also upper and lower trays to lay tools on within reach.
