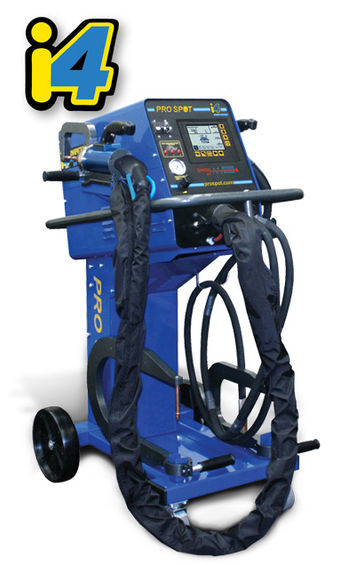

i4 Inverter Resistance Spot Welder
The i4 Inverter Resistance Spot Welder is designed to handle the difficult to weld materials such as boron steels and Advanced High Strength Steels (AHSS). These new metals are rapidly becoming the material of choice among car manufacturers. The i4 includes an OEM programmable feature with detailed repair illustrations and customized weld programs.
Features:
-
Inverter technology, 2000Hz.
-
Liquid Cooled
-
Fully Upgradable software stored on removable flash card
-
Designed for new advanced steels: AHSS, HSS, T.R.I.P, BORON
-
Current Sensing Technology
-
OEM repair procedures on-board
-
Multiple languages, change on-the-fly
-
4-cable system
-
3-phase input
-
Double-Acting Spot Gun
-
Two-sided spot welding
-
Single-sided welding
-
X-Gun adaptive
-
Upgradable to overhead installation
-
Built-in MIG welder available (optional)
More Features
Extension Arms
Exchanging the arms on our weld guns is quick and easy.
The i4 comes standard with several different types of weld arm extensions (508mm U-Arm, C-Arm, Wheelhouse Arm) and others are available at request, so that you can tackle any welding problem with as much ease and accuracy as possible. From left: PS-503 600mm U-Arm, PS-305 508mm U-Arm, PS-306 C-Arm Deep, PS-403 X-Adapter, PS-302 C-Arm, and PS-52-5/8 Wheelhouse Arm.
PS-500 Double-Acting Spot Gun
Push one button to open electrodes wide, then push the other button to close electrodes and weld. Pro Spot’s PS-500 Spot Gun System features electrode pressure over 600 Lb. with all extension arm sizes. I-CAR minimum recommended squeeze pressure is 400lb.
Single-Sided Welding
The i4 is capable of handling a variety of single-sided welding needs, including:
-
Washer
-
Nut & Bolt
-
Nail
-
Rivet
-
Stitch
Front Panel
The i4 features a clean ergonomic interface layout with the power switch and electrode pressure knobs all set in a convenient and straight forward manner and a large 4×6″ monitor capable of displaying images and OEM repair procedures.
-
Power Switch
-
3-Phase Power Indication Lights
-
Electrode Pressure Gauge
-
Electrode Pressure Control Knob
-
Display Screen
The i4 package can include a MIG welder as an option. It can also be installed later as an upgrade. This feature allows the convenience of STRSW and MIG welding in one unit.
MIG Features
-
220V 1-phase ready to use
-
Binzel connector: quick-connect all-in-one adapter
-
Ideal for collision repair welding

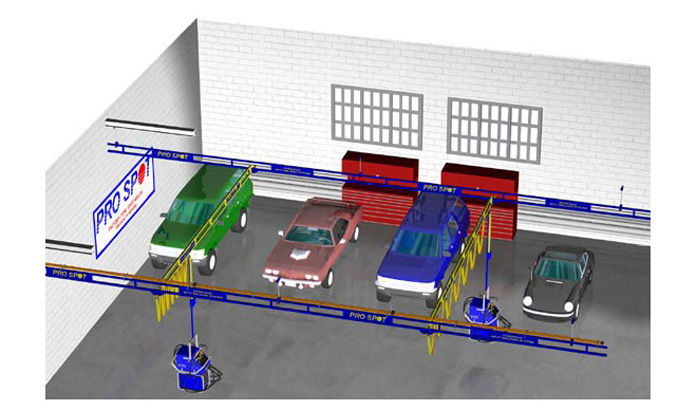

The i4 has an overhead installation option. With the overhead option, the welder hangs from a track system that can cover up to 14 bays.
Overhead Features
-
All the features of a portable i4 welder. (Optional MIG welder included.)
-
Convenient overhead mounting system.
-
No cables, air hoses or equipment on the floor.
-
Always connected, ready to weld.
-
Stores out of the way when not in use.
-
Moves easily around the shop.
Contact Us
i4 Software
The i4’s software is easily upgraded with a removable Flash Card as new data and information become available. The latest i4 software features over 3,000 GM OEM repair screens in addition to Dodge, Toyota, Lexus, and Volvo.
i4 Log Feature
The i4 data log feature is an easy way to manage weld history, quality of welds, and power applied to each weld. Detailed information is stored in a log file that is easily accessed using a template stored on a removable USB flash drive.
Weld Bond Program
Weld-Bonding program for your advanced steel applications. Current is controlled via stored parameters. Amperage Feedback Display: Shows the exact amount of current being used by the welder for each weld.
Over 3000 OEM Repair Screens
Access over 3,000 OEM Repair Screens (including: GM, Toyota, Lexus, Volvo, Dodge and More!) as well as general welder help and maintenance on-board.
